Launch X431 Tesla LAN Network Port Diagnostic Connector

Launch X431 Tesla LAN Network Port Diagnostic Connector ( to Enable Tesla Service Mode )

Launch X431 Tesla LAN Network Port Diagnostic Connector Description:

Cables From Launch with Product Number: MK26677
This Weight Product: 350g

Launch X431 Tesla LAN Network Port Diagnostic Connector Specs:

Manufacturer: Launch
Condition: New

Launch X431 Tesla LAN Network Port Diagnostic Connector Function:

Used in local area network (LAN) function (car enters maintenance mode), currently supported products: X-431 PAD V, PAD VII series, EV MAX, X431 PRO 3S+ V3.0/V5.0 etc diagnostic tools with Simplified Chinese, Traditional Chinese, Japanese, Korean, Arabic and Russian software.


Launch X431 Tesla LAN Network Port Diagnostic Connector Wiring diagrams

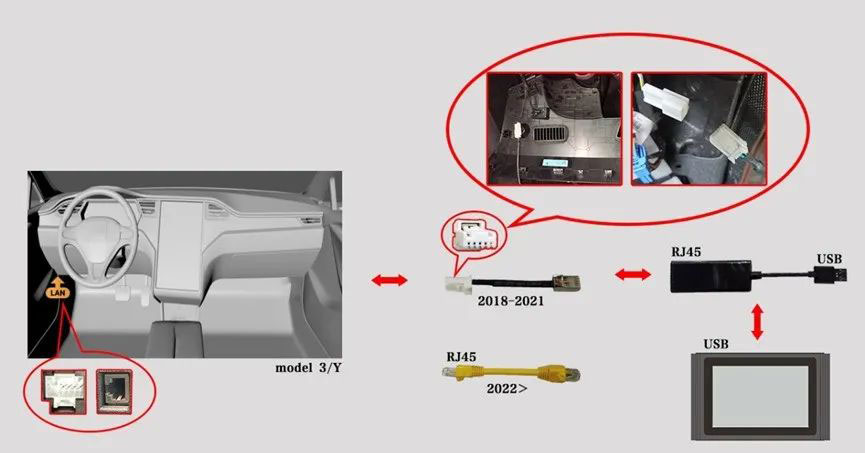

1). 2018 onwards Model 3/Model Y

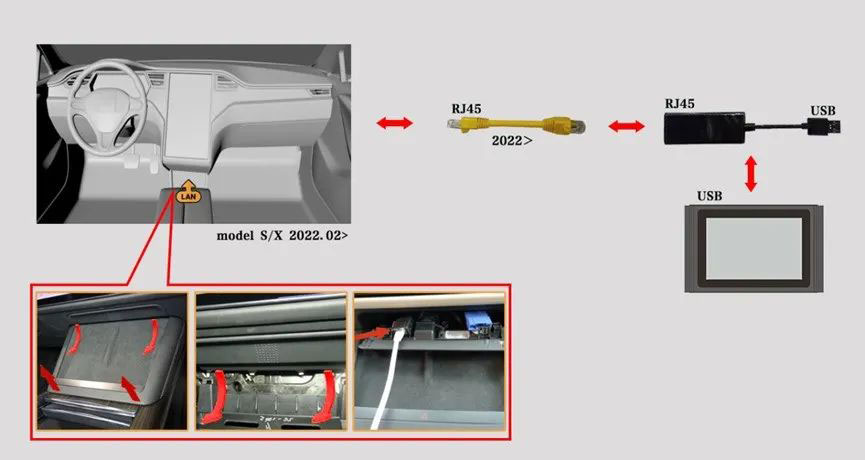

2). 2022 onwards Model S/Model X

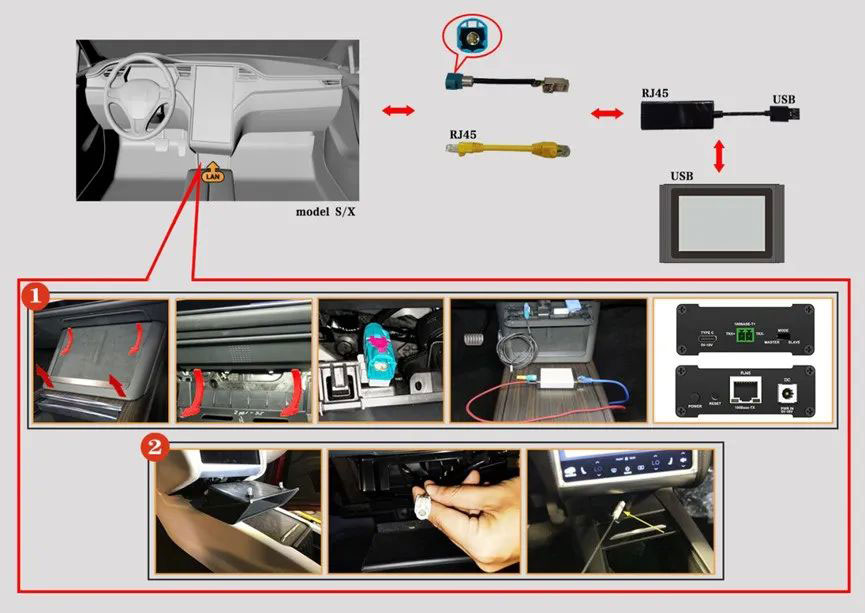

3). 2018-2021 Model S/Model X

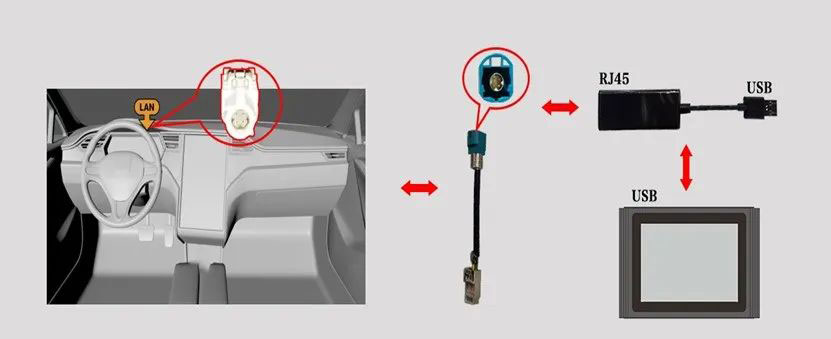

4). 2014-2018 Model S/X Tegra chip MCU
