Texa NAVIGATOR NANO S2 With Full CAR Activation Texa NAVIGATOR NANO S2 Vehicle Interface with IDC6m PLUS CAR SOFTWARE LICENSE For PC + TEXA CAR TEXPACK CONTRACT D08664 + P2301000000000 + AGA00 MKON539
Texa NAVIGATOR NANO S2 With Full CAR Activation
Texa NAVIGATOR NANO S2 With Full CAR Activation
Texa NAVIGATOR NANO S2 With Full CAR Activation | MK3 -| thumbnail

Texa NAVIGATOR NANO S2 With Full CAR Activation

Texa NAVIGATOR NANO S2 Vehicle Interface with IDC6m PLUS CAR SOFTWARE LICENSE For PC + TEXA CAR TEXPACK CONTRACT

D08664 + P2301000000000 + AGA00

Write Review
$3,825.58 (€3,290.00)
Add to Wishlist
Product Code: MKON539
Categories Diagnostic Tools
Manufacturer Texa
In StockIn Stock
Product Specifications
Manufacturer Texa
Condition New
Weight 2000 g

Texa NAVIGATOR NANO S2 With Full CAR Activation

Product Description:

New Texa NAVIGATOR NANO S2 Vehicle Interface with IDC6m PLUS CAR SOFTWARE LICENSE For PC  + TEXA CAR TEXPACK CONTRACT

Diagnostic Tools From Texa with Product Number: MKON539

Note: Only Support IDC6 Plus Marine + IDC6 Plus Bike Softwares

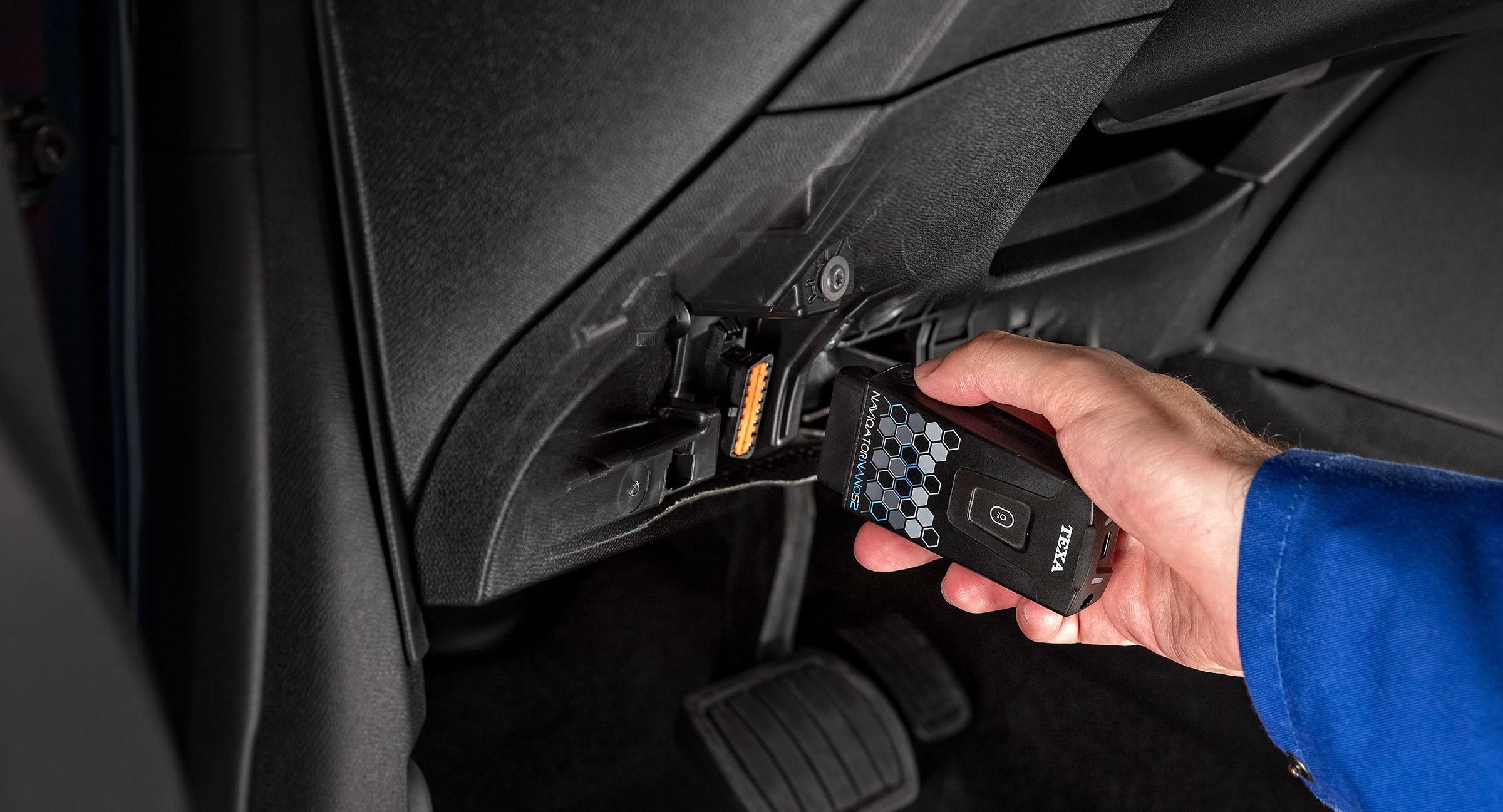

Texa NAVIGATOR NANO S2 Vehicle Interface

The simplest solution among the vehicle interfaces offered by TEXA.

Small, robust, lightweight and ergonomic, it has been specifically developed for the diagnostic operations in the CAR environment.

Every aspect of NAVIGATOR NANO S 2 has been carefully designed and developed to fully satisfy the needs of the modern workshops, creating an interface that is rich in innovative technical details.
Just think of its new latest-generation processor, 8 GB storage, and an advanced connectivity that includes a Bluetooth 5.0 module.

Moreover, NAVIGATOR NANO S 2 is compatible with the CAN FD, supporting the simultaneous management of the 3 channels, and DoIP communication protocols.



Technical features



Processor: CORTEX M7 STM32H735AGI6 up to 550
MHz, 1MB FLASH, 564KB RAM
SRAM: 16 MBits organized in 1024K x 16 bits
eMMC: 8 GByte on an 8-bit bus

External Flash memory: 16 Mbit flash NOR organized as 1M x 16bit
Internal battery:
Lithium polymer, single cell
3.7 V 130 mA/h
LP401429-PCM-LD

Vehicle Battery: 12 Vdc system management
Nominal power supply voltage: OBD: 12 V direct voltage

Wireless communication: Bluetooth 5.0 class1
Operating frequency band: 2402 … 2480 MHz
Maximum radio frequency power transmitted: 10 dBm

Wired connection:
• Virtual COM Via USB Full Speed
• USB C: 5 V *
Electronic switch: 2-way, 13 independent positions

Diagnostic connector: OBD
Supported protocols:
• Blink codes
• K, L (with 60 mA current protection) ISO9141-2, ISO14230
• CAN_FD 11898-2:2016 3 channels
• CAN ISO 11898-3
• CAN SAE J2411 Single Wire
• SAE J1850 PWM e VPW
• Ethernet DoIP ISO13400-3
Power supply connector: OBD

User interface:
• LED RGB x4
• Buzzer

Consumption: 12 V direct voltage , 250 mA

Operating temperature: 0 °C … 40 °C
Storing temperature: -20 °C … 60 °C
Battery charging temperature: 0 °C … 45 °C

Operating moisture: 10% … 80% without condensation

Weight: 72 g
Environmental conditions:
• Use: internal and external
• Altitude: < 2000 m
• Supply voltage fluctuations: ±10%
• Overvoltage category: II
• Pollution degree: 2
• Maximum relative humidity 80% for temperatures up to 31 °C, linearly decreasing to 50% at 40 °C

Directives:
RED 2014/53/EU
RoHS 2011/65/EU and delegated Directive
2015/863/EU

Regulations:
Radio Equipment Regulation 2017 No. 1206
RoHS Regulation 2012 No. 3032

Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328

Electrical safety:
EN 62368-1
EN 62368-3
EN 62311
